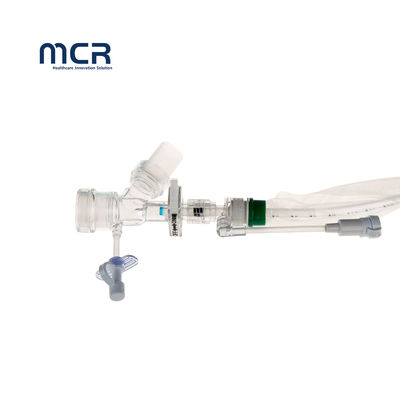

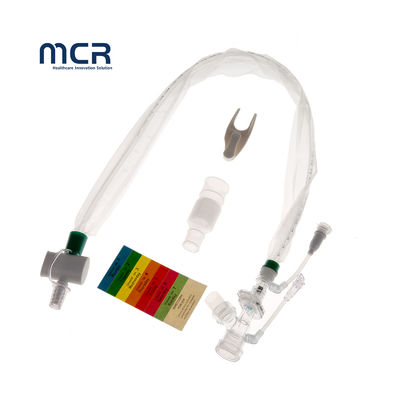

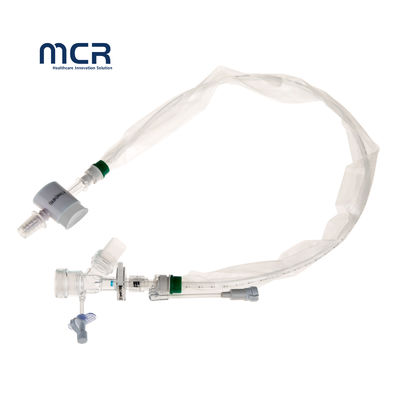

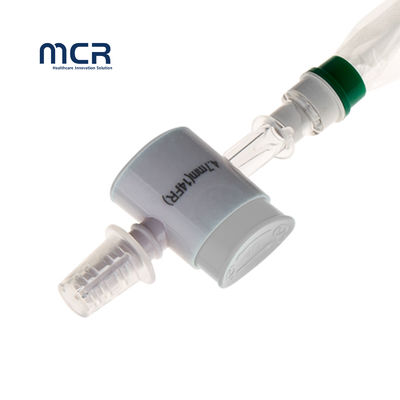

Disposable Closed Suction Tube Luer Lock Push-pull Switch Double Rotary Joint 72 Hours

Disposable closed suction tube Luer lock push-pull switch double rotary joint 72 hours

Product Introduction

This series of closed-end suction tubes is primarily used to clear airway secretions in mechanically ventilated patients. They maintain ventilation and oxygenation during suctioning, effectively reducing the risk of cross-infection. They feature a Luer lock connector and a push-on/off control valve for one-handed operation. A built-in locking mechanism prevents accidental suction triggering. The suction tube tip features a soft blue color to minimize airway mucosal damage, and graduated markings facilitate depth control. All products are sterilized with ethylene oxide and individually packaged for safe, ready-to-use operation.

Parameter table

Product Features

· Push-type switch and Luer lock design : easy to operate, one-handed control of the suction process, Luer lock connection to prevent falling off.

· Soft blue suction tip : Reduces airway mucosal damage and improves patient comfort.
-Dual swivel joint: Supports multi-angle connection to ventilator tubing, flexible adaptation to different clinical settings.

· Transparent protective cover : Visually manage the suction process, with clear scales for easy control of insertion depth.

· Flush port design : convenient for cleaning the pipeline after suctioning and keeping the pipeline unobstructed.

· Isolation valve and anti-accidental touch lock : effectively avoid cross infection and accidental suction triggering.

· Various sizes and color codes ​​: Easy to quickly identify the model and the target group.

Technology

This product is made of medical-grade PVC, offering excellent flexibility and kink resistance. The suction tube is covered with a PU protective sleeve to prevent contamination and cross-infection. All products are manufactured in a Class 100,000 cleanroom and sterilized with ethylene oxide to ensure sterility. The Luer lock interface meets international standards, ensuring a secure connection. The push-type on/off valve is made of medical silicone, offering a sensitive response and strong durability. This product undergoes rigorous testing for air tightness, flow rate, and biocompatibility, complying with ISO13485 quality management system requirements.

FAQ

Q : Is this product reusable?
A : No. All closed-end suction tubes are single-use products and should be disposed of according to regulations after use.

Q : Can you provide customized length or color?
A : Yes. We can provide customized services according to customer needs.

Q : How to store?
A : It should be stored in a dry, clean, dark environment, away from high temperature and corrosive gas.

Q : Is it suitable for all ventilators?
A : Yes, the product's standard interface can be adapted to most ventilator devices.

How to operate

Check the packaging for completeness. Do not use if damaged.

Open the package and take out the product.

Connect the swivel to the endotracheal tube or tracheostomy tube.

Connect the ventilator tubing to the swivel.

Label the color rings with the date of use.

Ensure the flush port and MDI port covers are closed before suctioning.

Slide the switch valve to the open position and insert the suction tube to the required depth.

Press the negative pressure control valve to start suctioning and withdraw the tube when completed.

If necessary, the tubing can be cleaned by injecting saline through the flush port.
